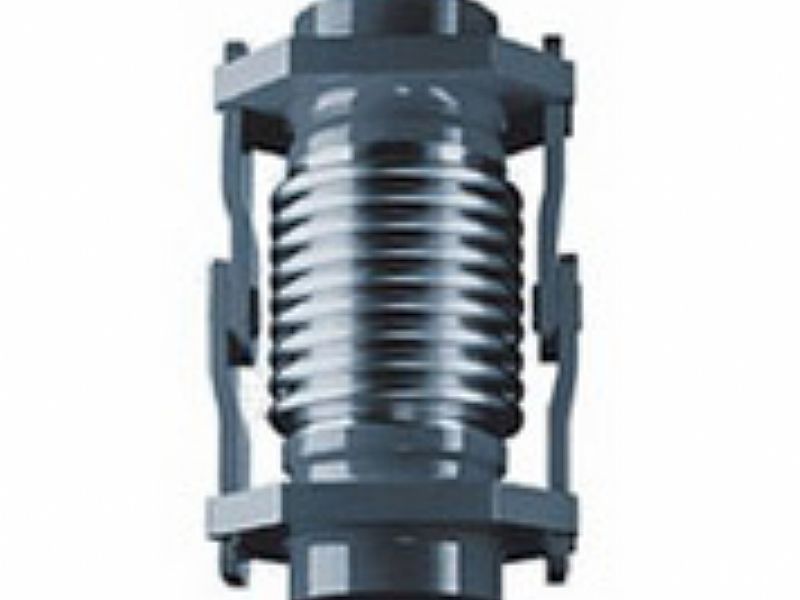

旁通壓力平衡式波紋管膨脹節性能特點：
分為單式旁通壓力平衡式波紋膨脹節和復式旁通壓力平衡式波紋膨脹節，采用同一種規格的波紋管，體積小、成本低、導向性好，穩定性好。主要用于吸收軸向位移并能平衡波紋管的壓力推力，內壓推力載荷由自身構件平衡、承受，用于不允許有較大推力的場合。
旁通壓力平衡式波紋管膨脹節應用范圍： 主要用于不需設置固定支架的場合，能有效保護設備和管線不變形。
|
公稱通徑 DN mm |
總波數 n |
n1/2n2 n1大管波數 n2小管波數 |
壓力等級Mpa |
徑向外形尺寸 mm |
壓力對應的產品長度Lmm |
|||||
|
0.25 |
0.6 |
接管J型 |
法蘭F型 |
|||||||
|
軸向補償量mm |
軸向剛度N/mm |
0.25Mpa |
0.6Mpa |
0.25Mpa |
0.6Mpa |
0.25Mpa |
0.6Mpa |
|||
|
600 |
12 |
4/8 |
82/1050 |
53/4410 |
1173 |
600 |
2000 |
2250 |
2024 |
2274 |
|
18 |
6/12 |
123/700 |
80/2940 |
2300 |
2600 |
2324 |
2624 |
|||
|
24 |
8/16 |
165/525 |
106/2220 |
2700 |
2950 |
2724 |
2974 |
|||
|
700 |
12 |
4/8 |
82/1347 |
54/4945 |
1331 |
700 |
2000 |
2250 |
2024 |
2274 |
|
18 |
6/12 |
123/898 |
80/3297 |
2300 |
2600 |
2324 |
2624 |
|||
|
24 |
8/16 |
163/674 |
108/2473 |
2700 |
2950 |
2724 |
2974 |
|||
|
800 |
12 |
4/8 |
98/1003 |
45/7228 |
1474 |
800 |
2000 |
2250 |
2024 |
2274 |
|
18 |
6/12 |
146/668 |
68/4819 |
2300 |
2600 |
2324 |
2624 |
|||
|
24 |
8/16 |
195/501 |
90/3614 |
2700 |
2950 |
2724 |
2974 |
|||
|
900 |
12 |
4/8 |
106/1075 |
55/4628 |
1634 |
900 |
2000 |
2250 |
2024 |
2274 |
|
18 |
6/12 |
159/716 |
83/3085 |
2300 |
2600 |
2324 |
2624 |
|||
|
24 |
8/16 |
212/537 |
110/2314 |
2700 |
2950 |
2724 |
2974 |
|||
|
1000 |
12 |
4/8 |
108/1136 |
54/5042 |
1808 |
1000 |
2000 |
2250 |
2024 |
2274 |
|
18 |
6/12 |
162/758 |
82/3362 |
2300 |
2600 |
2324 |
2624 |
|||
|
24 |
8/16 |
215/568 |
108/2521 |
2700 |
2950 |
2724 |
2974 |
|||
|
1100 |
12 |
4/8 |
102/1404 |
67/3880 |
2016 |
1986 |
2100 |
2440 |
2124 |
2464 |
|
18 |
6/12 |
154/936 |
100/2990 |
2450 |
2750 |
2474 |
2774 |
|||
|
24 |
8/16 |
205/702 |
124/1940 |
2900 |
3110 |
2924 |
3134 |
|||
|
1200 |
12 |
4/8 |
110/1246 |
60/5062 |
2170 |
2130 |
2100 |
2440 |
2124 |
2464 |
|
18 |
6/12 |
165/831 |
89/3375 |
2450 |
2750 |
2474 |
2774 |
|||
|
24 |
8/16 |
220/623 |
120/2531 |
2900 |
3110 |
2924 |
3134 |
|||
|
1300 |
12 |
4/8 |
116/1237 |
68/5475 |
2316 |
2266 |
2100 |
2450 |
2124 |
2464 |
|
18 |
6/12 |
174/824 |
102/3650 |
2450 |
2840 |
2474 |
2774 |
|||
|
24 |
8/16 |
232/618 |
136/2738 |
2900 |
3230 |
2924 |
3134 |
|||
|
1400 |
12 |
4/8 |
115/1295 |
68/5722 |
2430 |
2380 |
2100 |
2460 |
2124 |
2464 |
|
18 |
6/12 |
172/863 |
102/3815 |
2450 |
2850 |
2474 |
2774 |
|||
|
24 |
8/16 |
230/647 |
136/2861 |
2900 |
3240 |
2924 |
3134 |
|||
|
1500 |
12 |
4/8 |
105/1772 |
46/8695 |
2576 |
2530 |
2100 |
2460 |
2124 |
2464 |
|
18 |
6/12 |
158/1132 |
69/5730 |
2450 |
2850 |
2474 |
2774 |
|||
|
24 |
8/16 |
211/886 |
92/4298 |
2900 |
3240 |
2924 |
3134 |
|||
